Nanofiltration (NF) Softening Technology

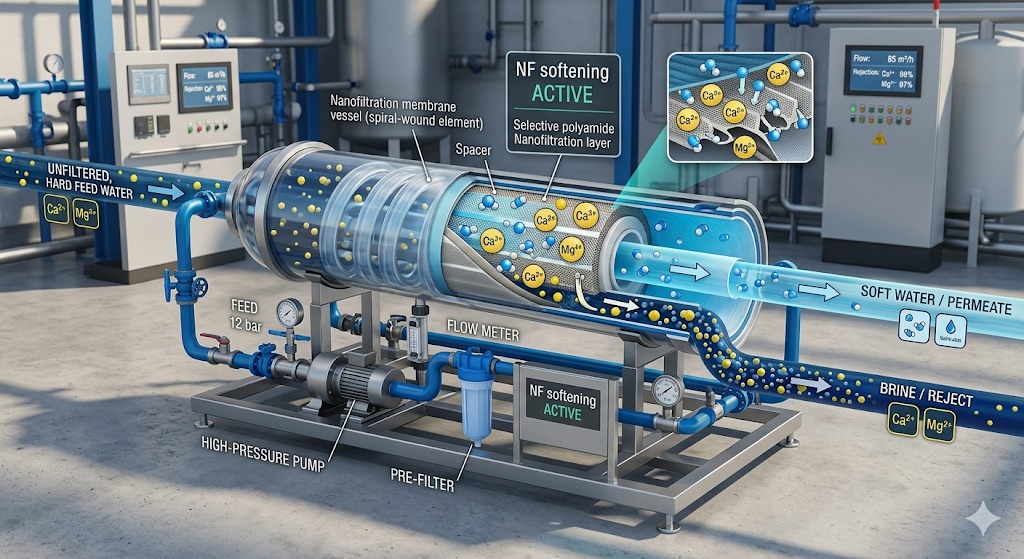

What it is: Nanofiltration is a pressure-driven membrane separation process with a pore size range of 0.001–0.01 microns (1–10 nm), positioned between ultrafiltration (UF) and reverse osmosis (RO). It selectively rejects divalent ions (Ca²⁺, Mg²⁺, SO₄²⁻) while allowing monovalent ions (Na⁺, Cl⁻) and water to pass through — making it ideal for softening applications.

Key Advantages

  1. Selective Ion Rejection Rejects 85–98% of hardness-causing divalent ions (Ca²⁺, Mg²⁺) while passing most monovalent salts — producing soft water without complete demineralization.
  2. Lower Operating Pressure Operates at 3–20 bar, significantly lower than RO (15–70 bar), resulting in lower energy consumption and reduced OPEX.
  3. No Chemical Dosing Eliminates need for lime, soda ash, or ion-exchange regeneration chemicals (NaCl/HCl/NaOH) — unlike conventional softening or IX systems.
  4. Simultaneous Removal of Multiple Contaminants Removes hardness, color, NOM (Natural Organic Matter), turbidity, heavy metals, and certain micropollutants in a single pass.
  5. Compact Footprint Modular, skid-mounted systems require far less space than conventional lime-soda softening plants.
  6. No Sludge Generation Unlike lime-soda softening, NF produces no chemical sludge — significantly reducing disposal costs and handling issues.
  7. Consistent Product Quality Membrane systems deliver stable, predictable output regardless of feed water seasonal variation.
  8. Suitable for Reuse Applications Softened permeate is ideal for boiler feed, cooling towers, laundry operations, RO pre-treatment, and process water — directly relevant to hospital/industrial ETP reuse schemes.

Limitations to Note

  • Higher capital cost than conventional softening
  • Membrane fouling/scaling requires antiscalant dosing and periodic CIP
  • Concentrate disposal needs management
  • Pre-treatment (5–10 micron cartridge filter, SDI control) is essential

Typical Applications

  • Municipal drinking water softening
  • Industrial process water (boiler feed, cooling towers)
  • Hotel/hospital laundry water reuse
  • Pre-treatment before RO in ZLD systems
  • Beverage and food processing



Nanobubble technology is an emerging aeration and treatment enhancement approach gaining traction in water and wastewater treatment. Here’s a concise overview:



What Are Nanobubbles?

Nanobubbles are ultra-fine gas bubbles typically *less than 200 nm in diameter*. Unlike conventional or micro-bubbles, they remain suspended in water for extended periods (hours to days) without rising to the surface, due to their near-neutral buoyancy and negative surface charge.

Advantages

– *High internal pressure* → enhanced gas dissolution (O₂, O₃, CO₂)

– *Large surface area-to-volume ratio* → superior mass transfer efficiency

– *Negative zeta potential* → repel each other, preventing coalescence

– *Free radical generation* → produce hydroxyl radicals (·OH) upon collapse, enabling advanced oxidation

– *Long residence time* in solution

Applications in STP / ETP / WTP

##STP (Sewage Treatment)

– Enhanced dissolved oxygen delivery to biological reactors (ASP, MBBR, SBR) — reduces blower energy by *20–40%*

– Improved MLSS activity and nitrification rates

– Sludge volume reduction through better oxidation

##ETP (Effluent Treatment)

– Treatment of recalcitrant/toxic organics via hydroxyl radical oxidation (AOP effect) — relevant for textile, pharma, and chemical effluents

– Enhanced coagulation-flocculation by destabilizing colloidal particles

– Ozone nanobubbles for decolourisation and COD reduction

### WTP (Water Treatment)

– Ozonation with nanobubbles for disinfection and micro-pollutant removal

– Enhanced DAF (Dissolved Air Flotation) performance

– Algae removal in surface water treatment
